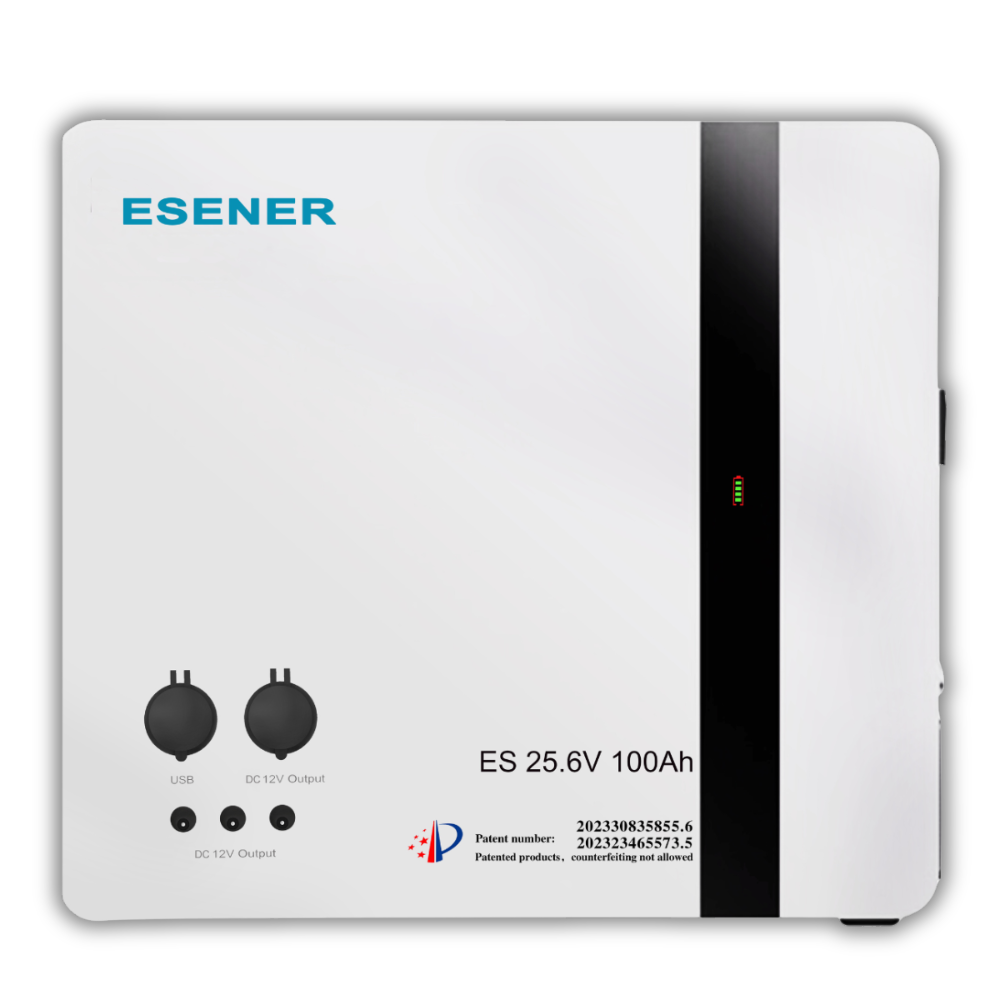

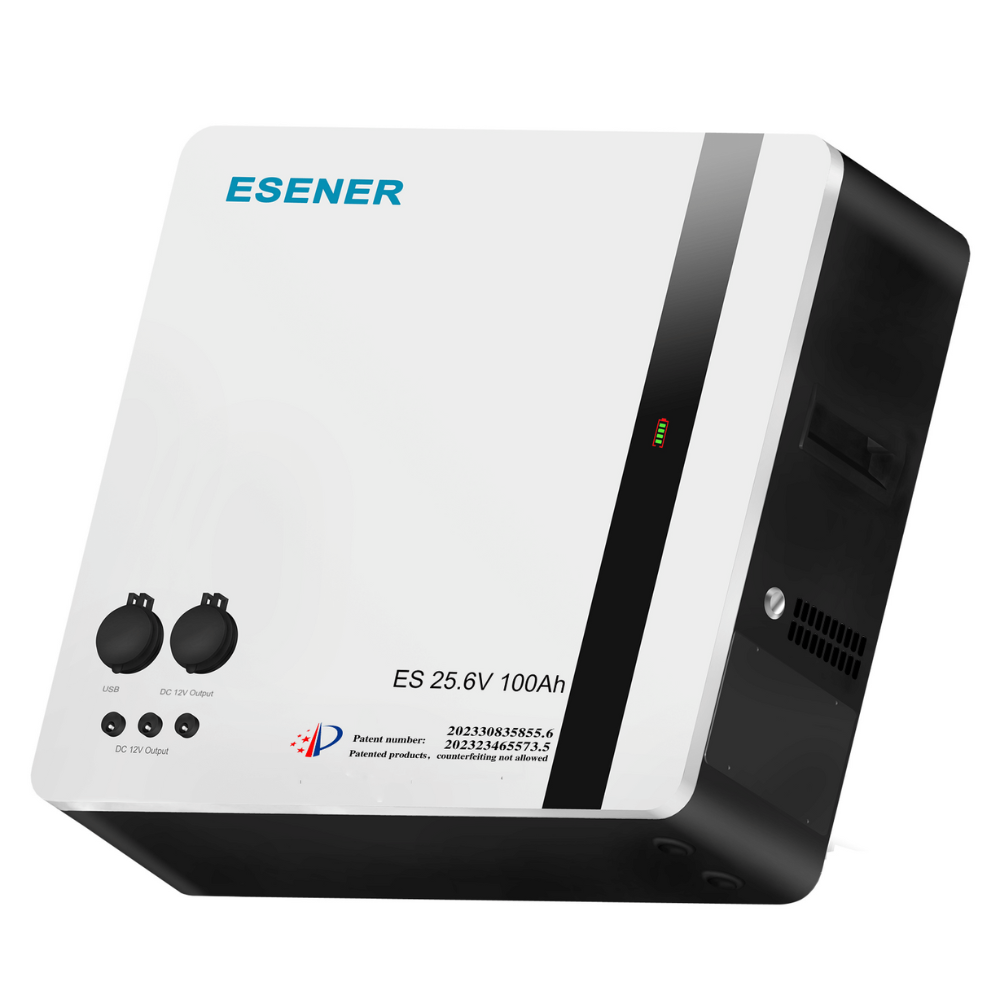

Esener 2.56KW 24V Lithium-Ion Battery

Esener 2.56KW 24V Lithium-Ion Battery

The ESENER ES-2.56kWh 25.6V Lithium-ion Battery is a high-performance, long-lasting energy storage solution, engineered for residential and commercial solar power systems. Equipped with an advanced Battery Management System (BMS) with current limiting and protection functions, this battery ensures safe and efficient operation under all conditions. With exceptional thermal performance, a high cycle life, and easy installation features, it delivers reliable backup and off-grid energy storage across a wide range of applications.

Features:

Advanced BMS – With current limiting, over-charge, over-discharge, and over temperature protection

High Cycle Life – ±5000 cycles at 80% DoD; designed lifespan ±15 years

1C Discharge Rate – High-performance lithium battery with 100A charge/discharge

Flexible Integration – Compatible with most inverters, solar charge controllers, and 24V lithium chargers

Scalable System – Supports parallel and series connection (Max 2S2P)

Low Self-Discharge – Ideal for backup and off-grid setups

User-Friendly – Wall-mount or shelf installation with side handles for easy transport

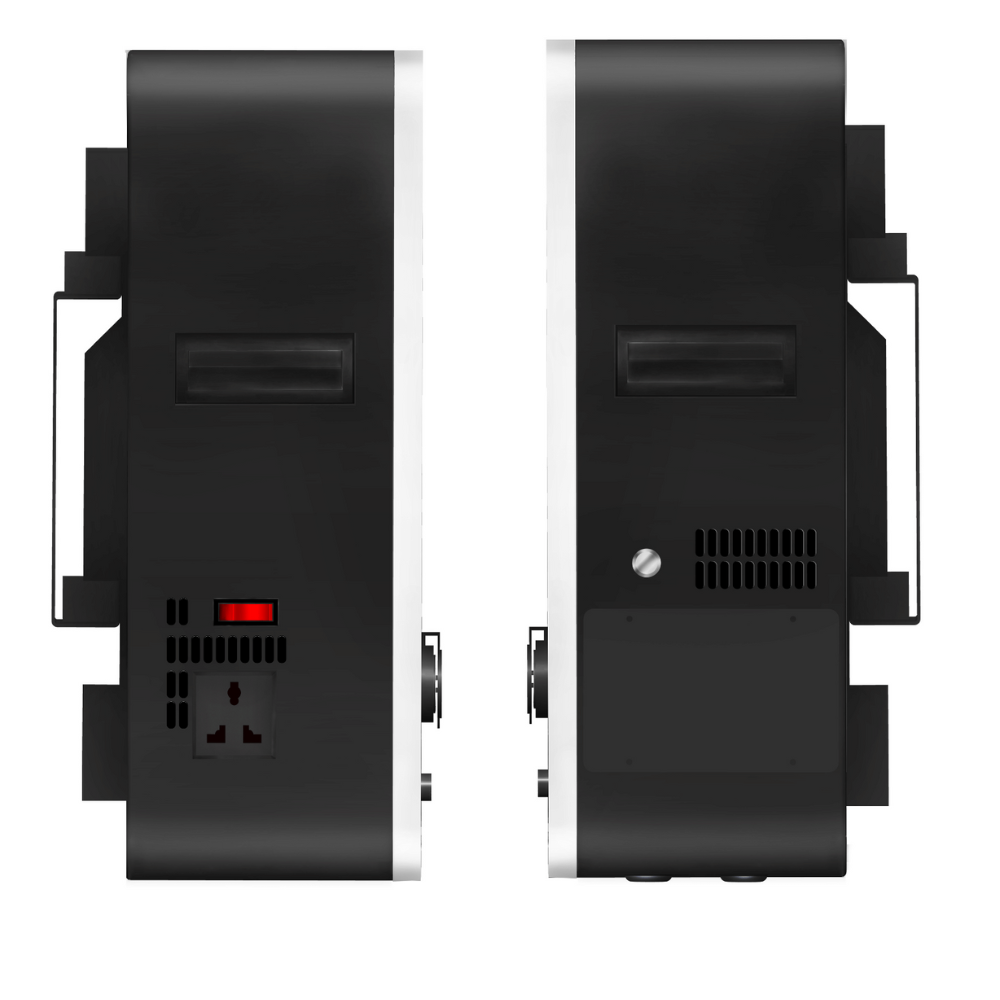

Built-In Ports – Includes 5V USB, 12V cigarette lighter, 12V light port, and 220V AC output (300W)

Specifications:

Model: ES-2.56KWh

Rated Capacity: 100Ah

Voltage: 25.6V

Energy: 2.56kWh

Discharge Cut-off Voltage: 23V

Equalized Charge Voltage: 29.2V

Max Charging Current: 100A

Max Discharging Current: 100A

C Rating: 1C

Cycle Life: ±5000 Cycles @ 80% DoD

Design Life: ±15 Years

Operating Temperature:

Charging: 0°C to +50°C

Discharging: -10°C to +50°C

Storage: -10°C to +50°C

Display: LED Indicato

Parallel Support: Yes (Max 2S2P)

Communication Ports: 2 x parallel instruction ports

Output Ports:

USB: 5V 1A / 2.1A

12V Light Port (DC2.1mm): 12V, 120W (10A)

12V Cigarette Lighter Port: 2–8A

220V AC Output: 300W

External Charging Options:

24V inverter

24V lithium charger

24V solar charge controller

Build: White bake lacquer steel case

Dimensions: 442 × 400 × 143 mm

Weight: Approx. 24.5 kg

What's in the box:

1x Esener 2.56KW 24V Lithium-Ion Battery
