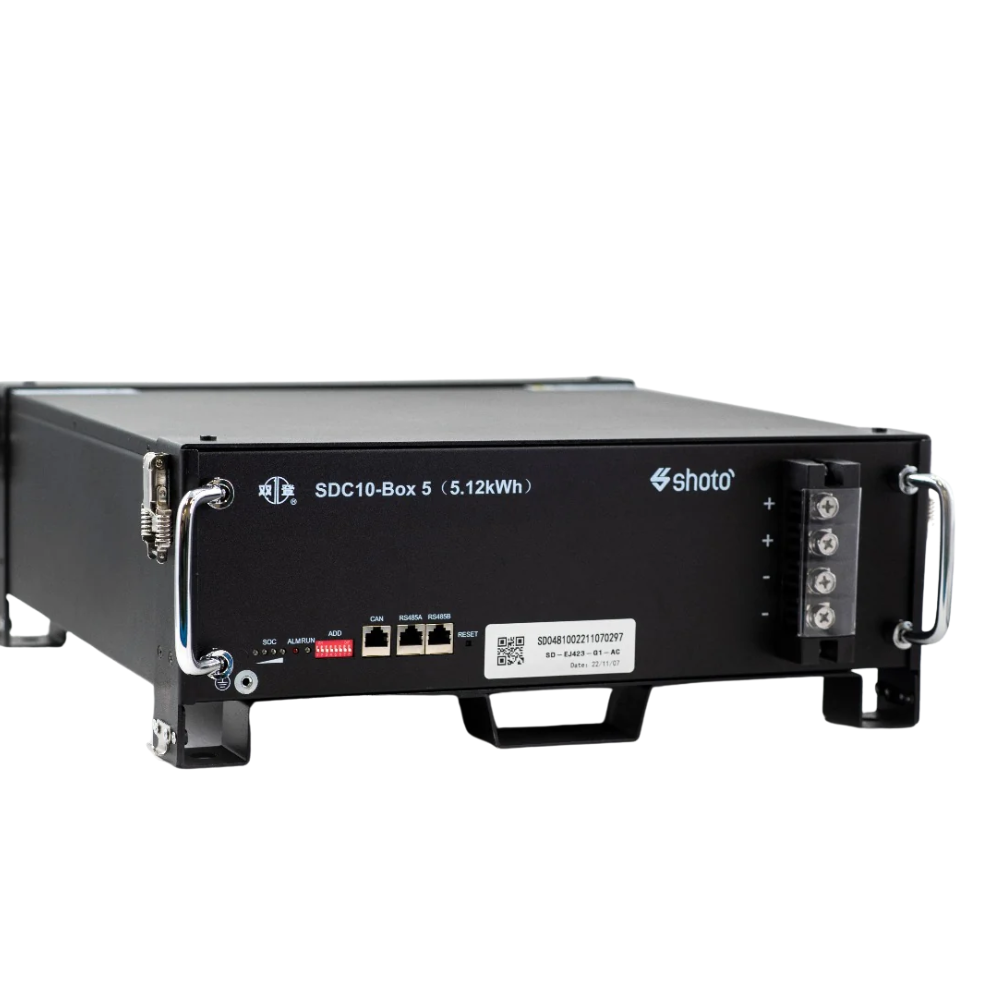

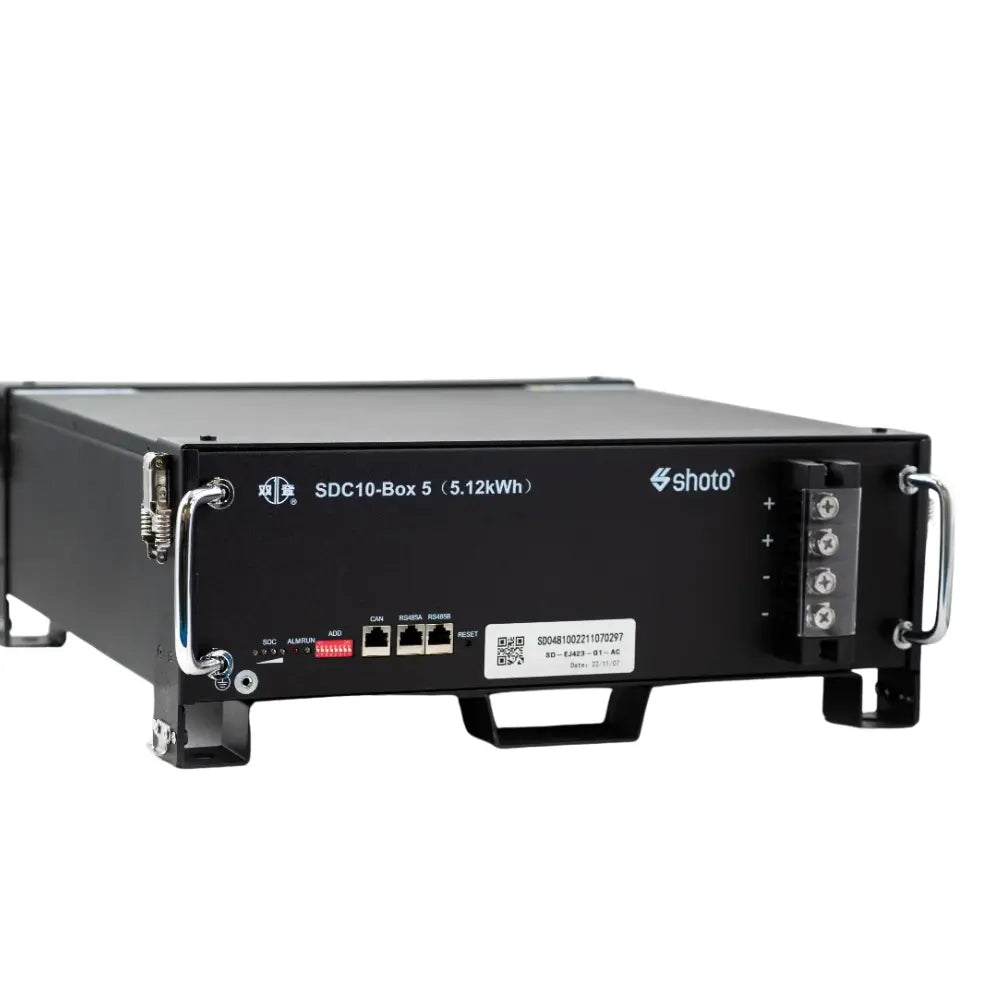

Shoto 48V 5.12KWH Lithium-Ion Battery

Shoto 48V 5.12KWH Lithium-Ion Battery

The Shoto 5.12kWh Lithium-Ion Battery (Model 51.2-100) is a high-performance energy storage solution designed for residential and commercial solar systems. Built with a rack-mounted structure to streamline installation and minimize costs, it delivers over 5000 cycles at 90% Depth of Discharge, ensuring long-term durability and efficiency. It’s compatible with leading inverter brands, making it a versatile choice for scalable solar setups.

Features:

• Rack mount and wall mount options for flexible installation
• Long lifespan: 10+ years with >5000 cycles at 90% DOD
• High energy usability with 4.6kWh effective capacity
• Compatible with a wide range of inverters including Growatt, Goodwe, Victron, Deye, Sofar, and Luxpower
• Supports up to 16 units in parallel for larger systems
• Stable and efficient charge/discharge performance

Specifications:

• Model: 51.2-100
• Nominal Energy: 5.12kWh
• Usable Capacity: 4.6kWh
• Rated Capacity: 100Ah
• Nominal Voltage: 51.2V
• Operating Voltage Range: 42V – 57.6V
• Charge Voltage: 57.6V
• Discharge Voltage: 48V
• Boost/Float Charge Voltage: 57.6V / 54V
• Depth of Discharge: 90%
• Cycle Life: ≥5000 @ 25°C
• Max Parallel Units: 16
• Installation Method: Rack Mount / Wall Mount
• Terminal Stud: M8
• Humidity Range: 5% – 95%
• Max Operating Altitude: ≤ 4000m

What's in the box:
1 x Shoto 48V 5.12KWH Lithium-Ion Battery
1 x Bracket
1 x Instruction Manual
