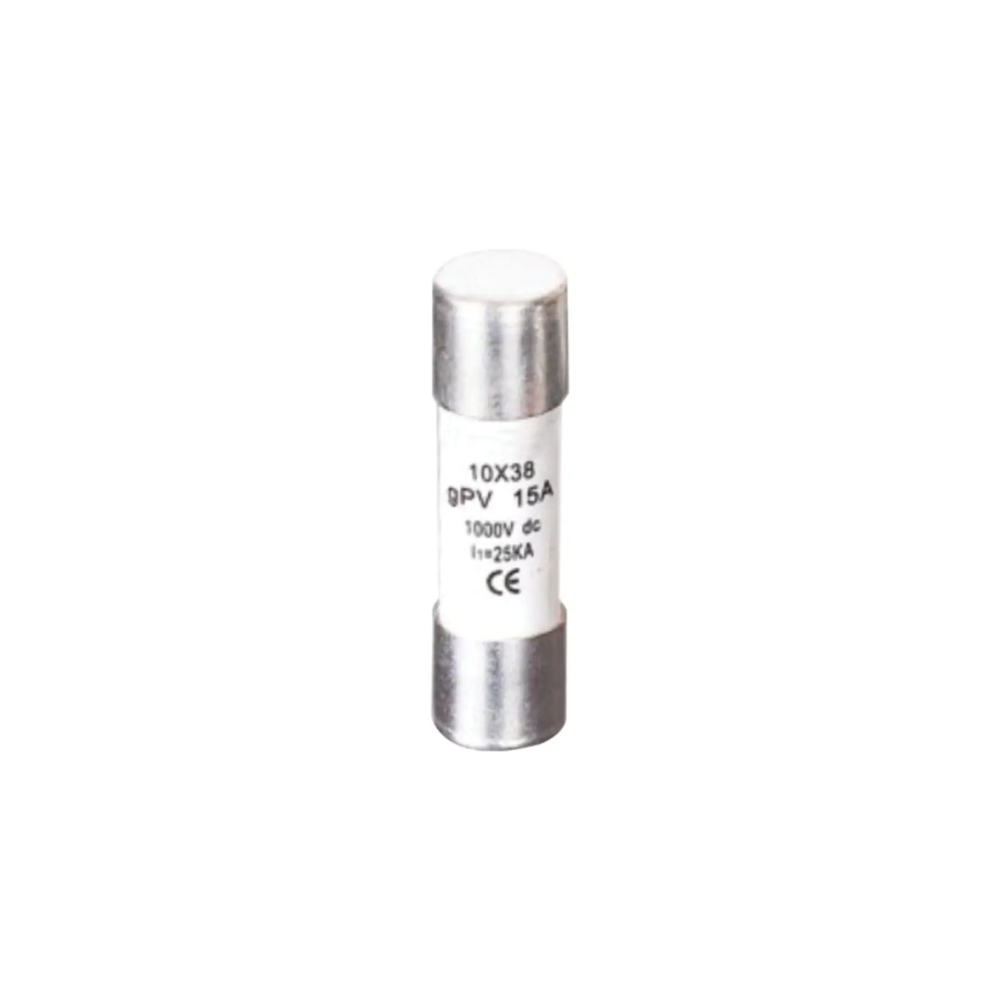

Onesto 15A 1000VDC Fuse

Onesto 15A 1000VDC Fuse

The Onesto 15A 1000VDC Solar Fuse is a cylindrical PV fuse (PVCF10‑15) designed to protect direct current circuits in solar installations. Its compact 10 × 38 mm form factor ensures compatibility with standard solar fuse holders and combiner boxes, providing reliable and fast-acting overcurrent protection for photovoltaic strings and inverters.

Features:

Rated for 1000 VDC and 15 A continuous current

Certified to IEC/EN 60269‑6 and TÜV standards

High interrupting capacity (~25 kA) for PV string protection ⁣

Fast-acting operation to quickly isolate faults

Durable PVC body for consistent performance in solar environments

Compatible with standard 10 × 38 mm fuse holders

Specifications:

Model: PVCF10‑15 (Onesto)

Form Factor: 10 × 38 mm cylindrical fuse

Rated Voltage: 1000 VDC

Rated Current: 15 A

Breaking Capacity: Up to 25 kA (at 1 kVDC)

Compliance: IEC/EN 60269-6, TÜV-certified

Operating Current: 15 A continuous

Application: Solar combiner boxes, PV inverters, DC circuit protection

Mounting: Fits standard MC4-style solar fuse holders and string boxes

What's in the box:

1x Onesto 15A 1000VDC Fuse
