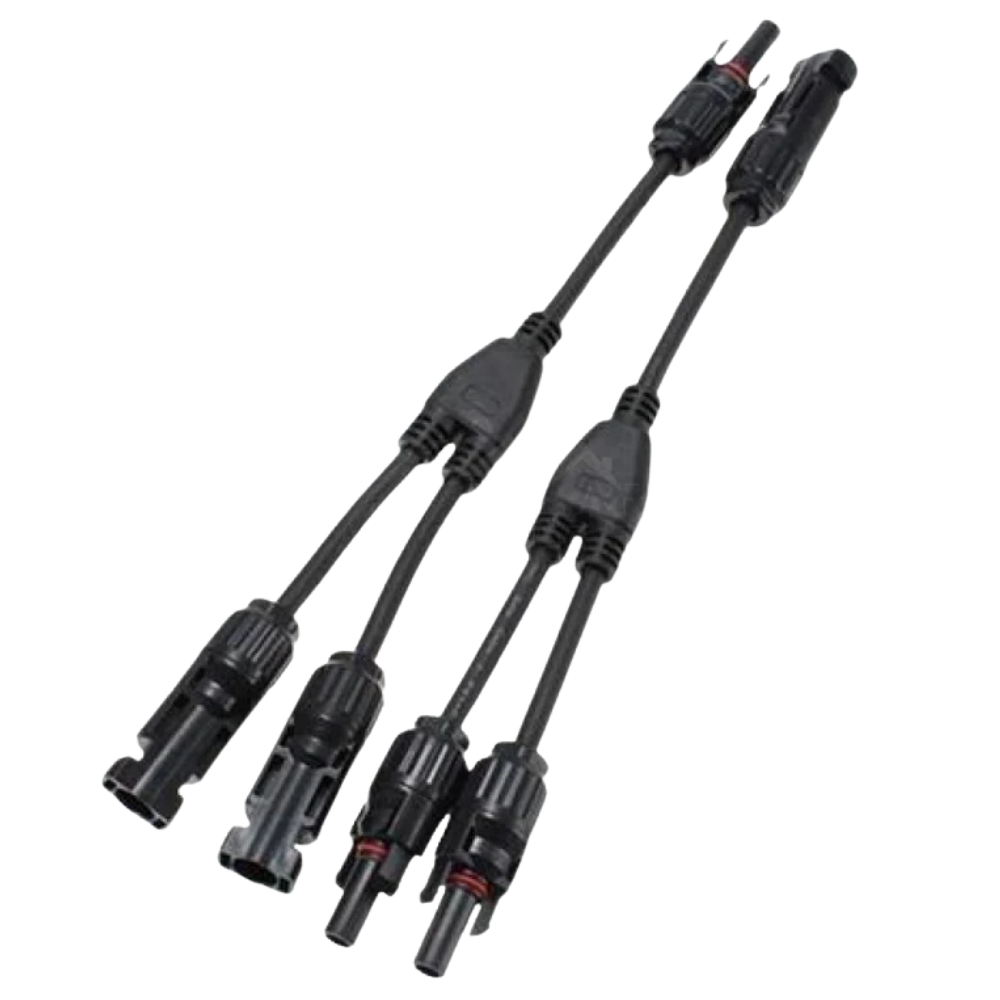

MC4 2-1 1in2out Y Connector

MC4 2-1 1in2out Y Connector

The MC04 2-1 Y MC4 Connector Pair offers a secure and weather-resistant solution for connecting solar panels in photovoltaic systems. Designed for quick installation and long-term reliability, these connectors support high-voltage operation and are compatible with a variety of cable sizes. Ideal for residential, commercial, and industrial solar setups.

Features:

Fast and tool-compatible crimp connection

Stable electrical contact with low resistance

Snap-in locking mechanism for secure mating

UV and weather-resistant housing

Compact, durable, and flame-retardant design

IP67-rated sealing for outdoor use

Specifications:

Product No.: MC04 2-1 Y

Rated Voltage: TÜV 1000V DC / UL 600V DC

Rated Current: 20A–30A

Cable Compatibility: 2.5mm²–6.0mm² / 14AWG–10AWG

Pin Diameter: 4.0mm

Proof Voltage: 8kV DC (1 min)

Contact Resistance: ≤ 5mΩ

Material (Contacts): Tin-plated copper

Material (Housing): PPO (Polyphenylene Oxide)

Ingress Protection: IP67 (IEC 60529)

Operating Temperature: -40°C to +85°C

Withdrawal Force: 50N

Insertion Force: 50N

Pollution Degree: 2

Protection Class: Class II

Flame Class: UL94-V0

What's in the box:

1x MC4 2-1 1in2out Y Connector
