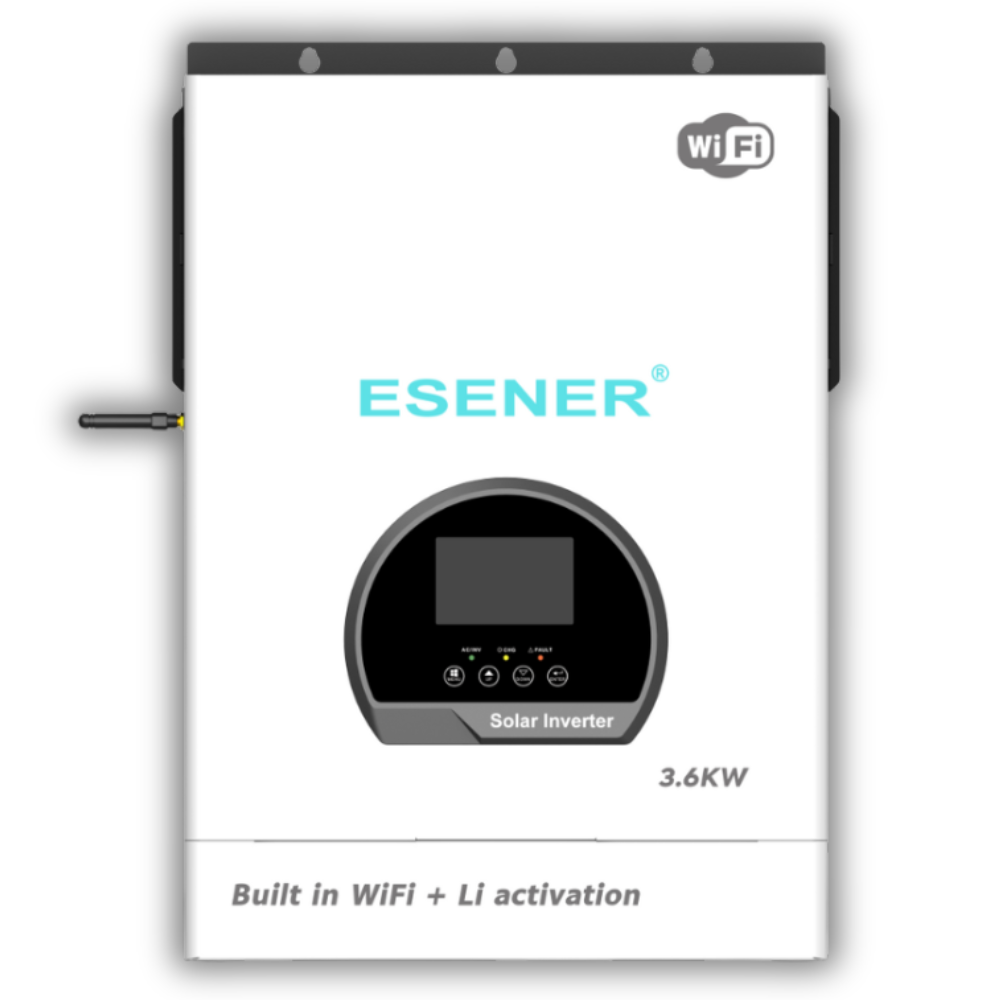

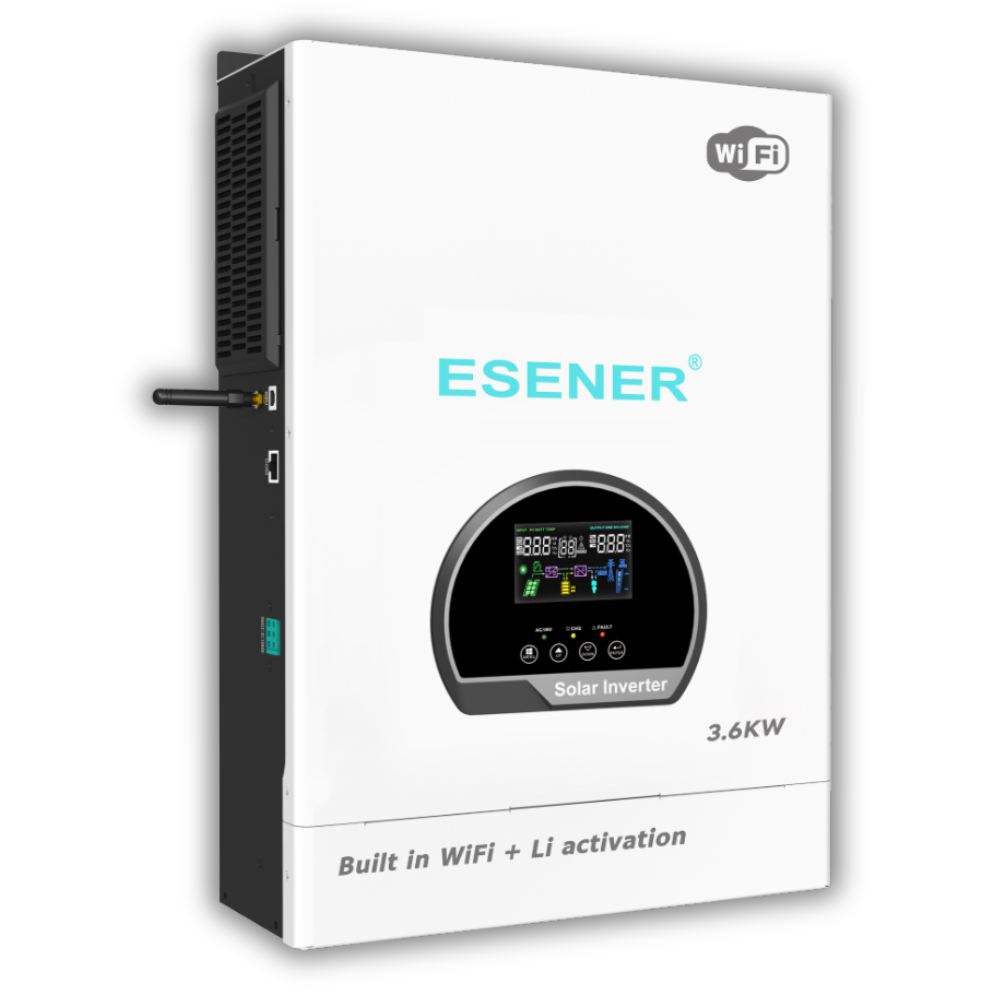

Esener 3.6KW 24V Pro Inverter

Esener 3.6KW 24V Pro Inverter

The ESENER 3.6kW Compact Hybrid Inverter combines high efficiency, intelligent load management, and next-generation connectivity into a sleek, compact unit. Designed to meet the demands of modern solar systems, this inverter features a 100A built-in MPPT controller, dual output functionality for smart load prioritization, and lithium battery compatibility with activation support. With a robust power output and extensive monitoring capabilities, it’s an ideal solution for residential backup, off-grid systems, and energy optimization in load-shedding environments.

Features:

3.6kW Pure Sine Wave Output – Reliable power suitable for all electrical appliances and sensitive electronics

Built-in MPPT (100A) – Supports up to 4000W of solar input with a wide voltage tracking range (30–320VDC)

Dual Output Design – Separates and manages critical/non-critical loads for optimal energy use

Lithium Battery Activation – Revives protected batteries using AC or solar input

Smart Colored LCD Display – Intuitive interface for settings, diagnostics, and live data

Built-in WiFi & Bluetooth – Enables app-based monitoring and remote control

BMS Communication via CAN – Seamless integration with compatible lithium battery systems

Advanced Multi-Stage Protection – Guards against overloads, short circuits, and deep discharge

Cold Start & Bypass Function – Operates independently of battery for maximum uptime

Flexible Monitoring Options – USB, CAN, and RS485 interfaces for complete system visibility

Specifications:

Rated Output Power: 3.6kW

Output Waveform: Pure Sine Wave

Max PV Array Power: 4000W

MPPT Voltage Range: 30V – 320VDC

Max Charging Current (PV): 100A

Battery Voltage: 24V

Dimensions: 425 × 250 × 550 MM

Display: Smart Colored LCD

Connectivity: WiFi, Bluetooth, USB, CAN, RS485

Load Management: Dual Output (Critical + Non-Critical)

Battery Compatibility: Lithium-ion, AGM, GEL

Lithium Activation: Yes

Protection Features: Overload, Short Circuit, Deep Discharge, Over-temperature

Cold Start Function: Yes

Bypass Function: Yes

Communication Protocols: CAN (BMS), USB, RS485

Mounting: Wall or shelf-mount

Operating Environment: Indoor, ventilated space

What's in the box:

1x Esener 3.6KW 24V Pro Inverter
