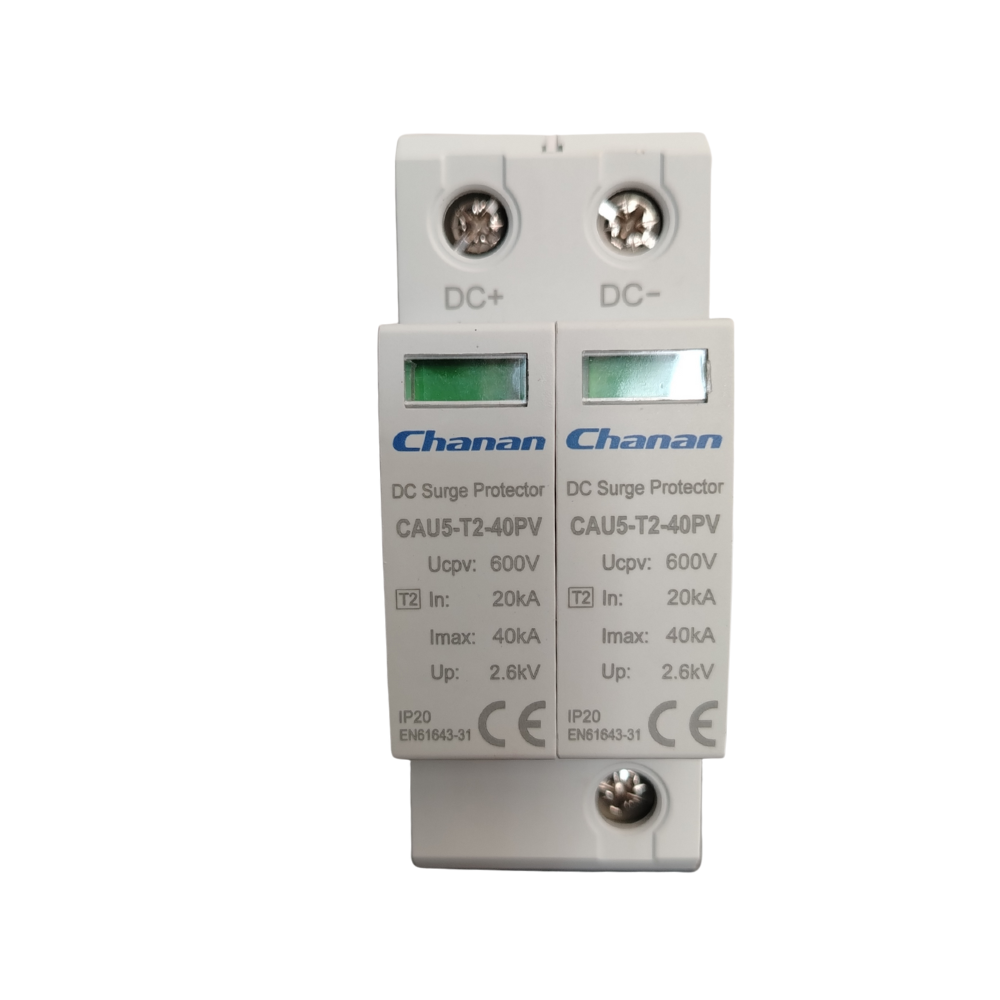

Chanan 2P 20-40ka 600V Surge Arrester DC

Chanan 2P 20-40ka 600V Surge Arrester DC

The Chanan CAU5 Type 2 PV Surge Protector is engineered to safeguard photovoltaic systems from transient over voltages caused by lightning strikes or grid disturbances. With a pluggable design and robust performance up to 40kA, it ensures long-term protection and easy maintenance in high-voltage solar installations.

Features:

Pluggable module design for quick replacement

Compatible with 600V, 1000V, and 1500V PV systems

Ensures system safety with voltage protection level under 5.2kV

Suitable for residential, commercial, and industrial solar setups

Specifications:

Surge Rating (Imax): 40kA (8/20 µs)

Voltage Protection Level (Up): <5.2kV

Max. Continuous Operating Voltage (Ucpv): 600V / 1000V / 1500V

Poles: 2

What's in the box:

1x Chanan 2P 20-40ka 600V Surge Arrester DC
