Direct answer
South Africa uses several plug and socket configurations under the SANS 164 series. The familiar large round-pin three-pin format is SANS 164-1, while the smaller modern three-pin configuration is SANS 164-2. For new electrical installations, ECA(SA) guidance states that each socket-outlet point must include at least one SANS 164-2 socket. SANS 164-1 has not simply become “illegal”; both formats can coexist within the rules.
Key facts
- SANS 164-1 is the traditional 16 A three-pin South African configuration; SANS 164-2 is the newer compact configuration.
- ECA(SA) states that since January 2018, socket-outlet points in new electrical installations must include at least one SANS 164-2 socket; SANS 164-1 may also be included.
- SAFEhouse states that socket outlets in South Africa must be shuttered as a safety feature.
- SAFEhouse also states that socket outlets are to be protected by sensitive earth-leakage protection, with 30 mA nominal tripping current in its guidance.
- Plugs, socket outlets and adaptors are regulated product categories under the VC 8008 compulsory specification framework.
Why South Africa has more than one household plug shape
South Africa is in a transition rather than a clean overnight change. The traditional SANS 164-1 plug/socket remains widespread in existing homes, while SANS 164-2 provides a more compact configuration and forms part of the current new-installation requirement described by ECA(SA).[1]
This matters for online retail because the phrase “South African plug” is ambiguous. A useful product page should identify the actual configuration instead of relying on a generic country label.
SANS 164-1: the familiar large three-pin format
SANS 164-1 is the large round-pin, three-pin configuration familiar in older and existing South African installations. It is still encountered everywhere and can still form part of compliant installations. The important buying check is whether the plug top and socket are correctly matched and compliant — not whether the format looks old-fashioned.
SANS 164-2: the compact modern format
SANS 164-2 uses a smaller, recessed socket format. SAFEhouse highlights the recessed well as a safety feature because the live pins become inaccessible during insertion.[2] ECA(SA) explains that, effective from January 2018, every socket-outlet point in a new electrical installation must include at least one outlet conforming to SANS 164-2; SANS 164-1 outlets may also be included.[1]
The safest consumer wording is therefore: “SANS 164-2 is required at new socket-outlet points under the stated wiring-code requirement,” not “the old plug has been banned.”
Where does the two-pin Europlug fit?
SAFEhouse notes compatibility between the SANS 164-5 two-pin plug commonly called a Europlug and certain SANS 164-2 / SANS 164-6 socket configurations.[2] This is one reason the newer socket format is convenient for low-power appliances supplied with two-pin plugs.
Do not assume that every round two-pin or imported plug is automatically compatible or compliant. Plug geometry, earthing and product compliance still matter.
The safety features customers should actually check
First, look for shutters. SAFEhouse states that shutters are compulsory on South African socket outlets and explains that they make it difficult to insert a single pin or metal object into a live entry.[2]
Second, understand that the socket is only one part of the safety system. SAFEhouse’s guide states that socket outlets are protected by sensitive earth-leakage protection and cites 30 mA nominal tripping current.[2] That protection is located upstream in the installation, not “inside every wall socket”.
Third, buy plugs, sockets and adaptors with credible compliance information. VC 8008 is the South African compulsory specification framework covering household and similar plugs, socket outlets and adaptors.[3]
Adaptors, multiplugs and USB sockets
Adaptors solve format compatibility; they do not increase the electrical capacity of the wall circuit. A multiplug with many outlets is still constrained by its own marked rating and by the upstream socket/circuit. Avoid stacking adaptors or using damaged/loose connections.
USB-A and USB-C outlets add electronics to the socket product. Check the USB output rating and standards information separately from the 230 V socket rating. “Has USB” is not evidence of fast charging, USB Power Delivery support or a particular output wattage unless the manufacturer specifies it.

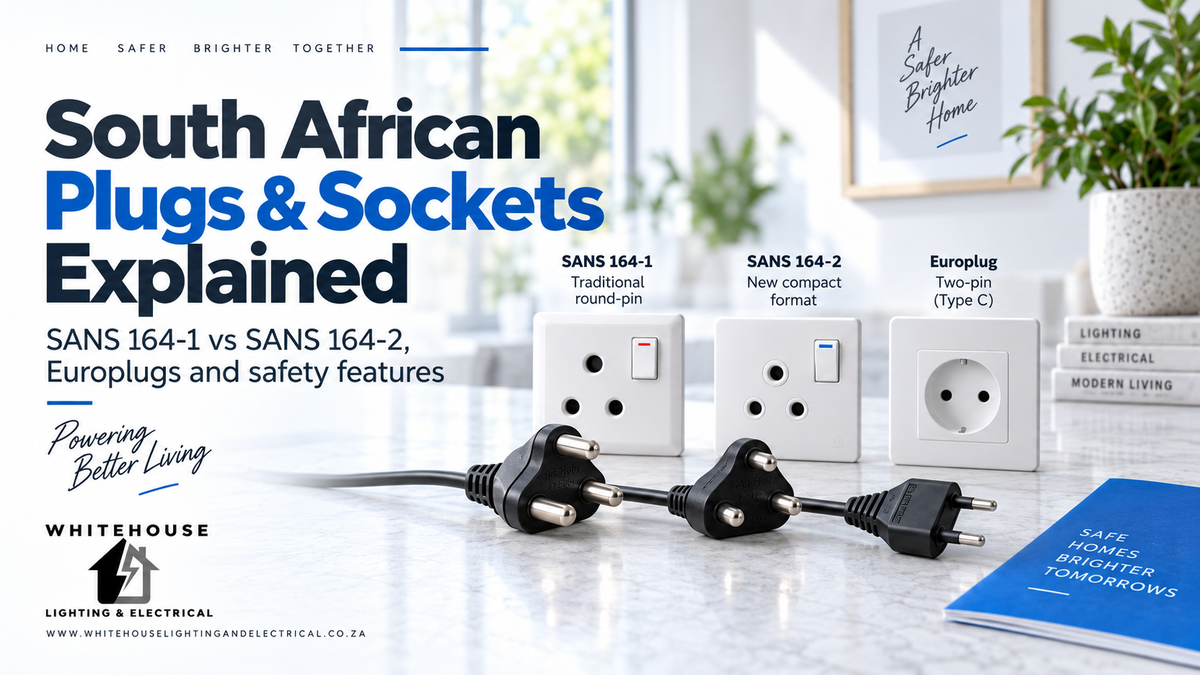

Common South African household connection formats
| Format | How to recognise it | Typical role |
|---|---|---|
| SANS 164-1 | Large three round pins in triangular layout | Traditional 16 A household plug/socket still widespread. |
| SANS 164-2 | Smaller three-pin configuration in a recessed socket well | Modern South African configuration required as part of new socket-outlet points. |
| SANS 164-5 / Europlug type | Two small round pins, unearthed | Common on low-power appliances; compatible with specified socket configurations. |
Frequently asked questions
Is the old South African three-pin plug illegal?
No. The transition to SANS 164-2 does not make every SANS 164-1 plug or socket illegal. The new-installation requirement is about including SANS 164-2 at each socket-outlet point.
Can I plug a Europlug directly into a SANS 164-2 socket?
A compliant SANS 164-5 two-pin plug is compatible with the relevant SANS 164-2 socket configuration. Do not generalise this to every imported two-pin plug.
Why are socket shutters important?
They block access to live contacts when a correct plug is not inserted, reducing the chance of a child or object contacting live parts.
Does a wall socket have earth leakage built in?
Normally the residual-current protection is provided upstream in the electrical installation. Some specialised socket products may have additional protection, but that is product-specific.
Are all travel adaptors safe in South Africa?
No. Check compliance, rated current/voltage, earthing requirements and the appliance. An adaptor changes the mechanical interface; it does not make an incompatible appliance electrically suitable.
Technical references and further reading
[1] ECA(SA) — Still Some Confusion Around New Compulsory Regulation for Socket Outlets — South African explanation of the SANS 164-2 requirement for new installations. Source link
[2] SAFEhouse — Guide to Sockets — South African socket safety guidance covering shutters, earth leakage and recessed socket formats. Source link
[3] South African Government — VC 8008 compulsory specification information — Government source for the compulsory specification covering plugs, socket outlets and adaptors. Source link
[4] ECA(SA) — SANS 10142-1:2026 Ed. 3.03 availability notice — Current South African wiring-code edition context. Source link
