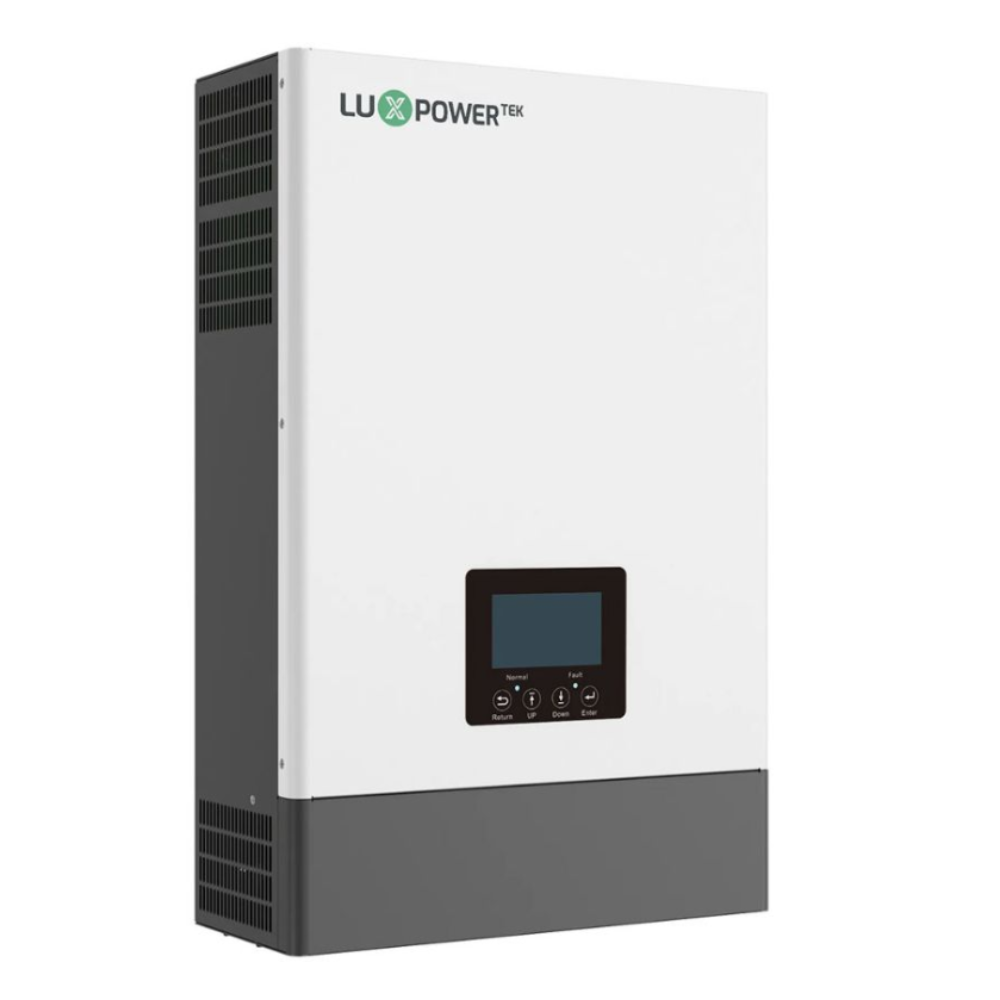

Luxpower SNA6000 Hybrid Inverter + CT

Luxpower SNA6000 Hybrid Inverter + CT

The LuxPower SNA6000 is a powerful and versatile 6kW off-grid inverter engineered to meet both residential and commercial solar energy needs. Supporting hybrid functionality, this inverter can operate independently off-grid or connect to the grid for more dynamic energy management. With dual MPPTs, a high PV input capacity of 8000W, lithium battery compatibility, and the ability to parallel up to 16 units, it is built for scalable and efficient solar installations.

Whether you’re looking to build an entirely off-grid setup or add resilience to your existing on-grid system, the SNA6000 offers dependable performance and intelligent energy control.

Features:

Off-Grid & On-Grid Flexibility – Operates in both pure off-grid or hybrid mode

High Output Power – Delivers a solid 6kW rated output for demanding loads

Wide Battery Compatibility – Supports lithium-ion and lead-acid batteries

Dual MPPTs – Maximize efficiency with two independent solar inputs (up to 8000W total)

Parallel Support – Connect up to 16 units for expanded systems

CT Sensor Enabled – Includes current transformer for load monitoring and smart energy use

Smart Load Management – Separate generator input and battery management for optimal control

Single-Phase or Unbalanced 3-Phase Operation – Flexible power delivery

Built-In Cooling – Fan-cooled for reliable operation in varying environments

Specifications:

Inverter:

Model: SNA6000

Rated Output Power: 6000W

Cooling Method: Fan

Dimensions: 330 x 505 x 135 mm

Weight: 14.5 kg

PV (Solar Input):

Max. PV Array Power: 8000W (2 x 4000W)

Rated PV Input Voltage: 320V

Number of MPPTs: 2

PV Input Voltage Range: 100 – 480V

MPPT Voltage Range: 120 – 385V

Start-up Voltage: 100V

Max PV Input Current (per MPPT): 17A

Max PV Short Circuit Current (per MPPT): 25A

Battery:

Compatible Battery Types: Lithium-ion / Lead-Acid

Rated Battery Voltage: 48V

Battery Voltage Range: 38.4V – 60V

Max. Charge/Discharge Current: 140A

Max. Charge/Discharge Power: 6000W

System & Connectivity:

Parallel Capability: Yes (up to 16 units)

CT Sensor Support: Yes (included)

AC Output: Single phase / Unbalanced 3-phase

Separate Generator Input: Yes

What's in the box:

1x Luxpower SNA6000 Hybrid Inverter + CT
