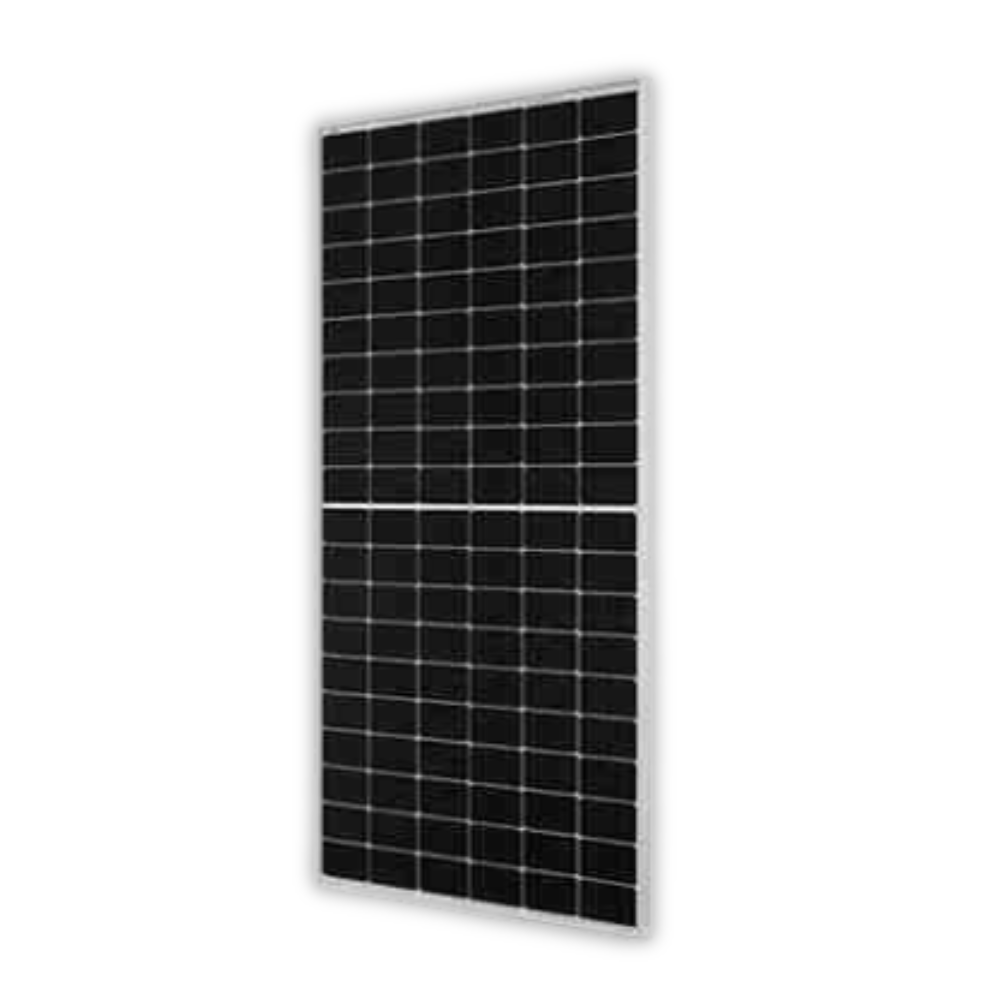

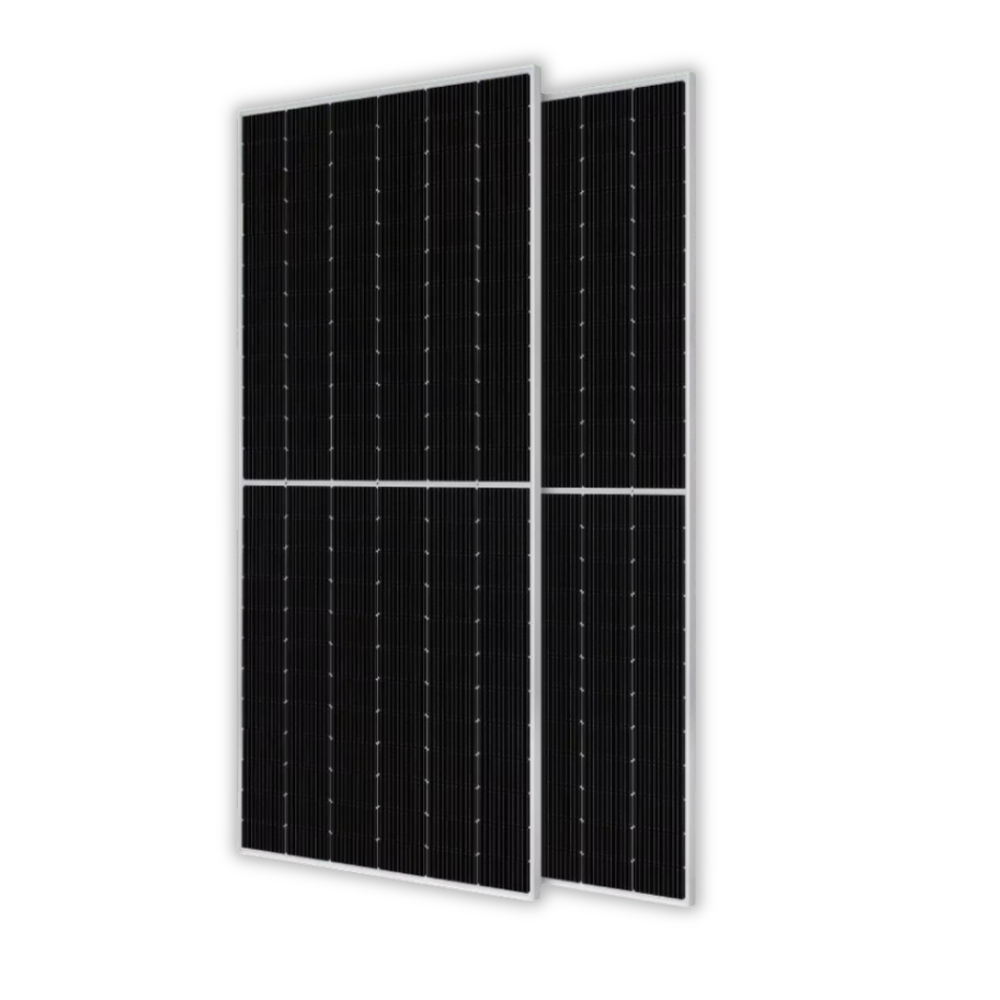

WHL&E 545W/JA Solar Panel
WHL&E 545W/JA Solar Panel is a solar and backup-power product designed for compatible energy systems. Its electrical ratings and system format should be matched to the connected equipment and installation design.
Features:
- Photovoltaic module converts sunlight into DC electrical energy
- Designed for integration into compatible solar and backup-power systems
- High power output: 545 W peak capacity for strong energy production
- High efficiency: Module efficiency around ~21% with half-cell technology
- PERC & half-cell design: Optimises performance, reduces hot-spot effects and improves shade tolerance
- Durable construction: Strong aluminium frame and rugged tempered glass for long-term outdoor use
Specifications:
- Brand: Whitehouse Lighting And Electrical
- Product Type: Solar Panel
- Model / MPN: 545W/JA
- Power: 545W
- Panel Type: Monocrystalline PERC Half-Cell PV Panel
- Power Output: 545 W
- Module Efficiency: ~21%
- Open Circuit Voltage (Voc): ~49.75 V
- Maximum Power Voltage (Vmp): ~41.80 V
- Short-Circuit Current (Isc): ~13.93 A
- Maximum Power Current (Imp): ~13.04 A
- Cells: 144 half-cut cells
- Frame: Anodised aluminium alloy
- Connectors: MC4 / QC 4.10 compatible
What's in the box:
- 1 x WHL&E 545W/JA Solar Panel
